RT5427

RT5427: Versatile Low-Voltage Semi Solid-State LFP Battery (5.43kWh)

Core Advantages

• Pioneering Safety: Semi-solid electrolyte technology eliminates leakage risks and ensures ultra-high thermal stability.
• Industry-Leading 16,000 Cycles: Engineered for longevity (@70% SOH).
• Flexible Expansion: Supports up to 16 units in parallel, allowing for a massive total capacity of over 86kWh.
• Powerful Performance: High-current support with a 1C discharge rate and a peak power output of 7.68kW.
• Easy Installation: Sleek and modular design that supports both wall-mounting and bracket-based floor stacking.
• Smart Monitoring: Built-in Smart BMS with integrated WiFi/Bluetooth for real-time remote monitoring and maintenance.

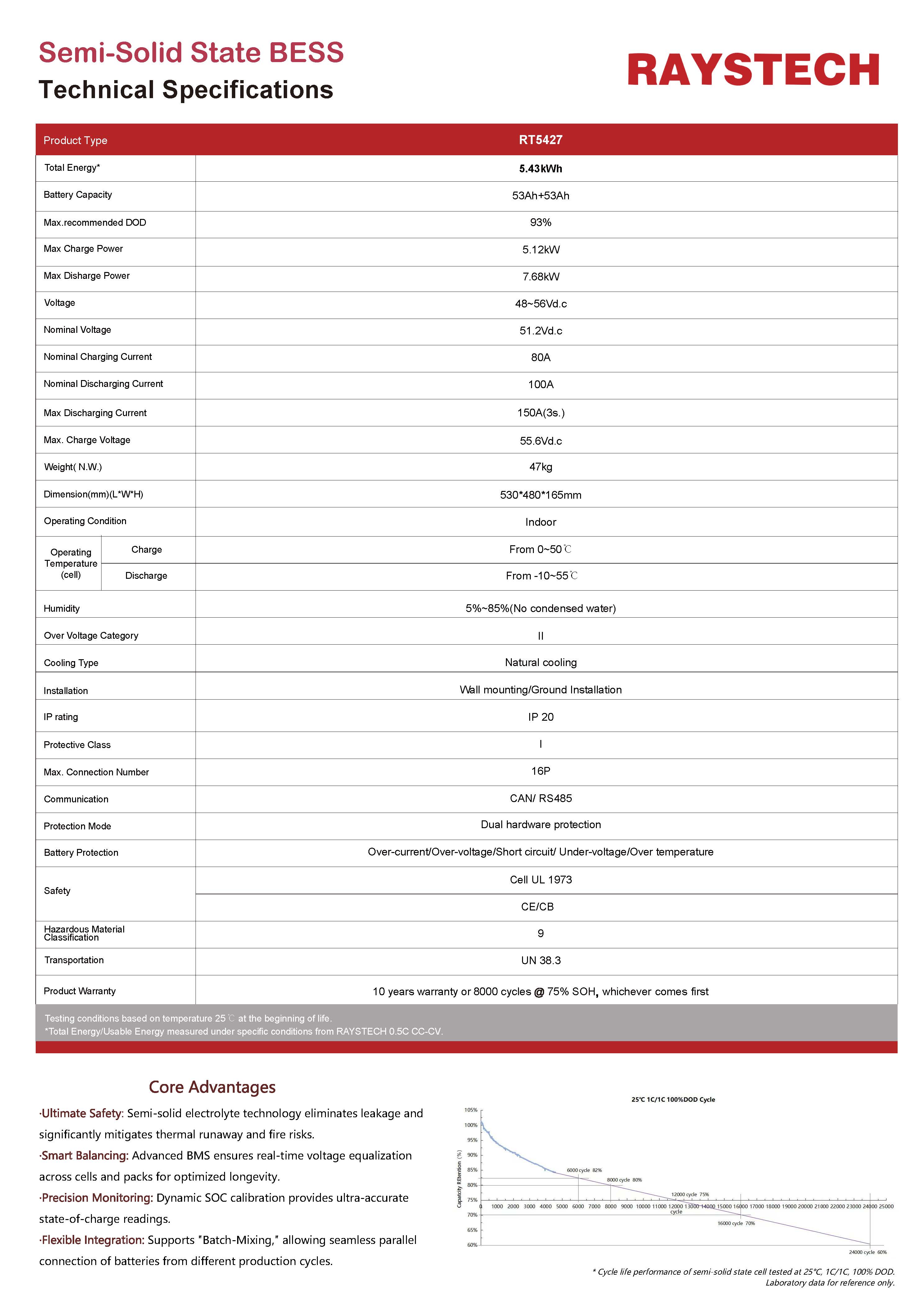

Technical Specifications

• Nominal Energy: 5.43 kWh
• Nominal Voltage: 51.2V
• Nominal Capacity: 106Ah (53Ah+53Ah)
• Discharge Rate: 1C (7.68kW Peak)
• Parallel Capability: Up to 16 Units
• IP Rating: IP20 (Indoor optimized)
• Installation: Wall-mounted / Ground Stacked

Applications

• Standard Residential Solar: The go-to choice for homeowners looking for a safe, high-capacity battery compatible with 48V low-voltage inverters.
• Modular Capacity Upgrades: Ideal for users who want to start small and expand their storage capacity incrementally by adding up to 16 modules.
• Indoor Energy Hubs: The compact design and dual-mounting options make it perfect for basement, utility room, or garage installations.
• High-Power Home Backup: Provides reliable emergency power for high-load appliances thanks to its superior 1C discharge performance.
