RT5427 HV & RT5427 SHV

RT5427 HV & SHV: World’s First Semi Solid-State High-Voltage LFP Battery

Model Comparison

• RT5427 HV (Standard): Optimized for reliable performance in environments from -20°C to 55°C.
• RT5427 SHV (Self-Heating): Equipped with an intelligent heating module to ensure stable operation in extreme cold (down to -30°C).

Core Advantages

• Ultimate Safety: Semi-solid electrolyte design eliminates leakage risks and prevents thermal runaway.
• 16,000 Cycles: Exceptional durability (@70% SOH) providing 15+ years of reliable service and higher ROI.
• Powerful 1C Rate: Supports full 1C charge and discharge for rapid energy delivery and replenishment.
• High Scalability: Flexible modular design supports up to 6 Series and 8 Parallel (6S8P) configurations.
• Rugged Build: IP65 rated for superior dust and water resistance in both indoor and outdoor setups.

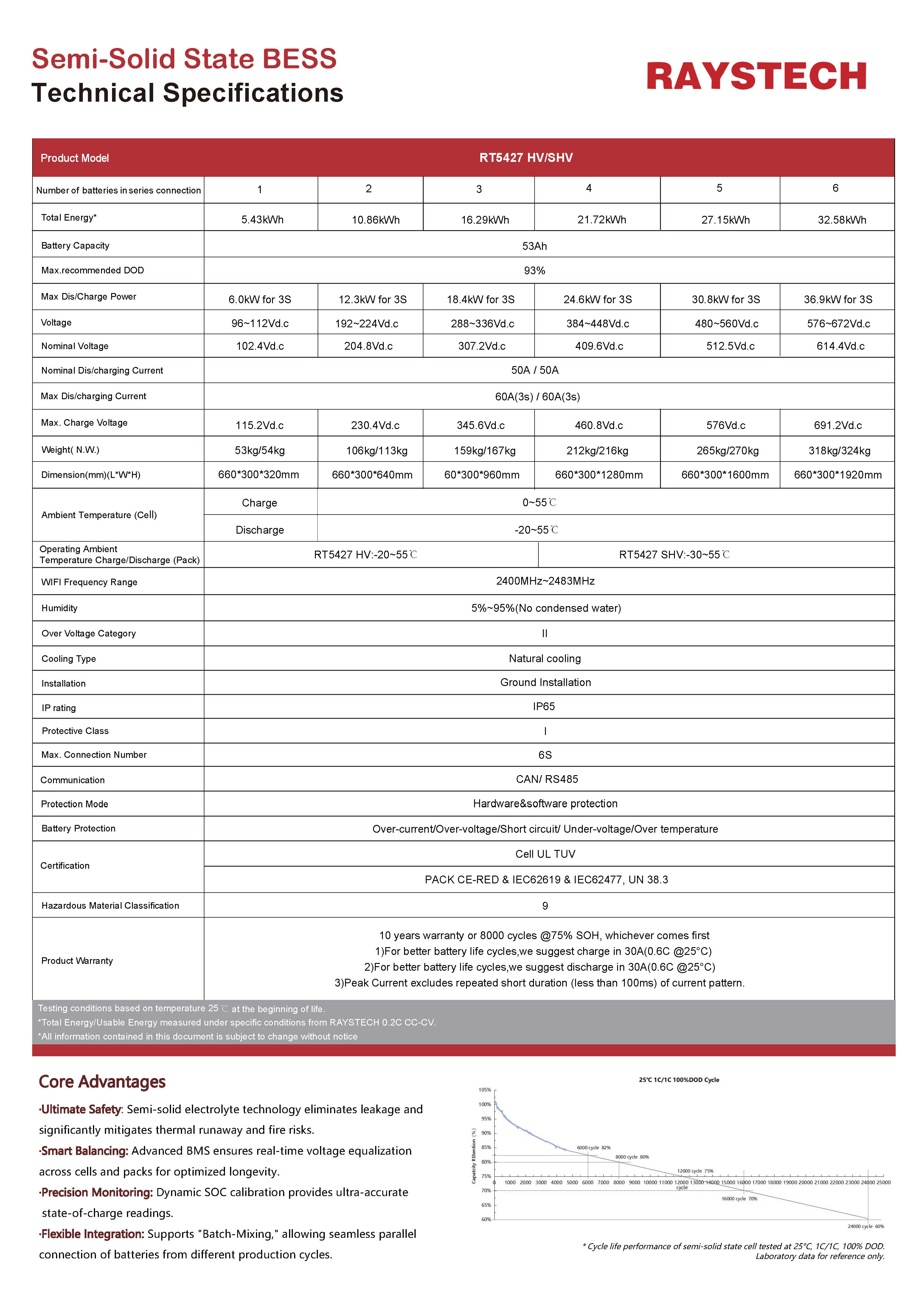

Technical Specifications

• Nominal Energy: 5.427 kWh | Voltage: 102.4V
• Nominal Capacity: 53Ah
• Temp. Range: Charge (0~55℃) / Discharge (-20~55℃)
• Certifications: UN38.3, CE-RED, TUV Mark

Applications

• High-Efficiency Residential Solar: Perfect for modern homes using high-voltage hybrid inverters to minimize energy conversion loss and maximize self-consumption.

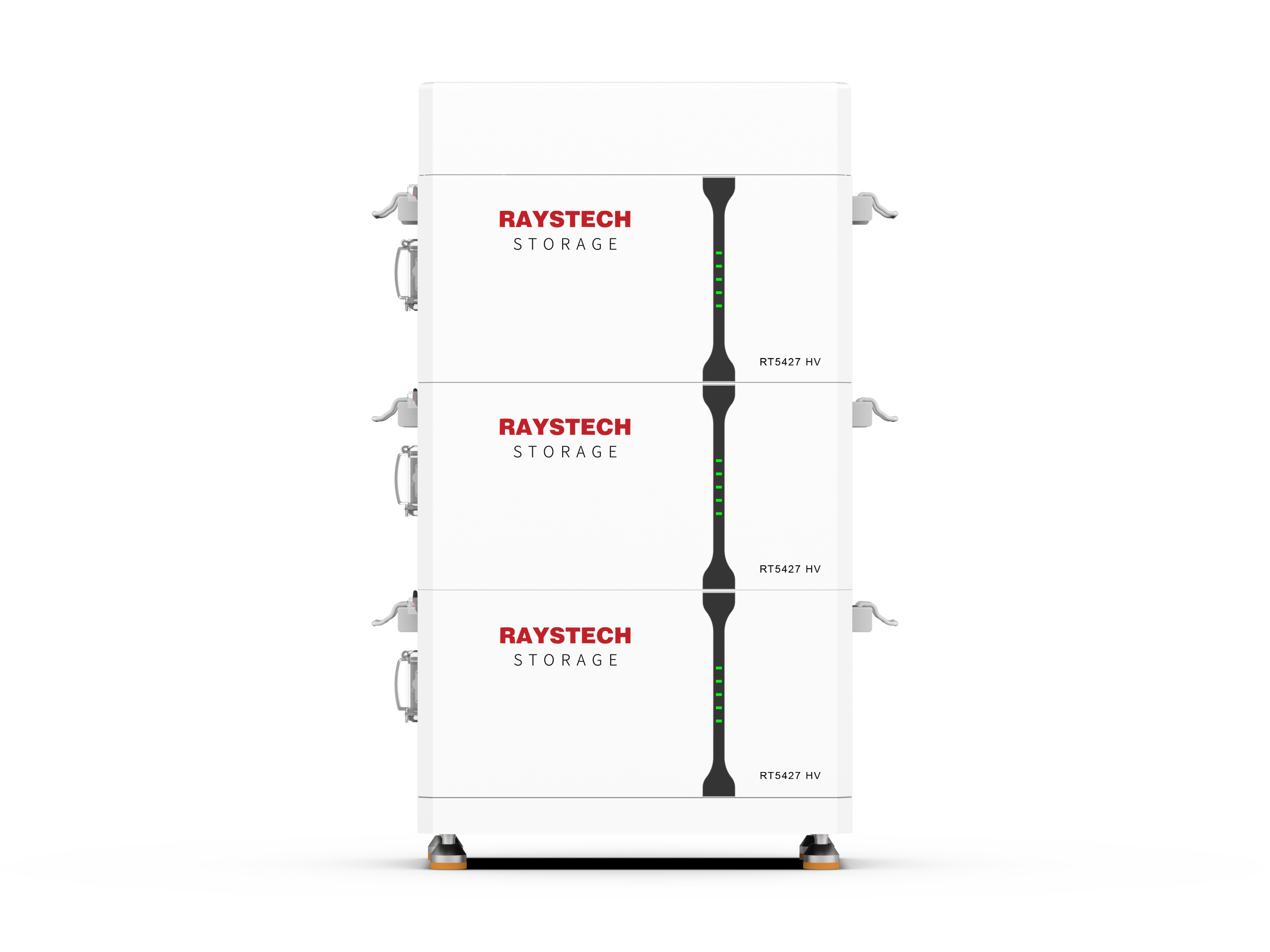

• Space-Constrained Installations: The sleek, stackable vertical design is ideal for narrow garages, utility rooms, or compact indoor spaces.
• Extreme Cold Climate Storage (SHV): Specifically designed for high-altitude or high-latitude regions (e.g., Northern Europe, North America) where outdoor performance is critical.
• Small-Scale Commercial (C&I): Scalable up to 6S8P to support small offices or shops with high instantaneous power demands.
