RT 16076MPlus

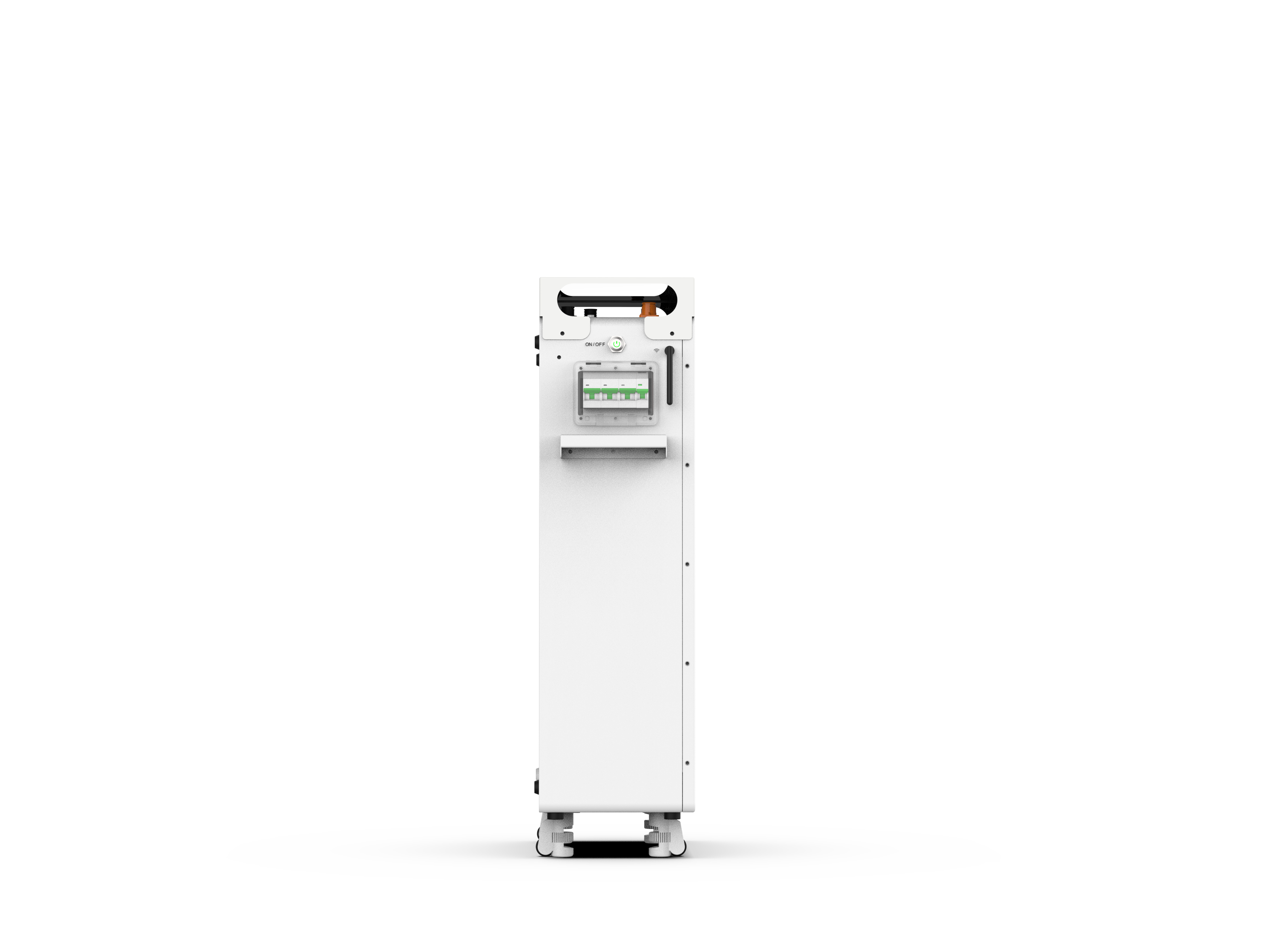

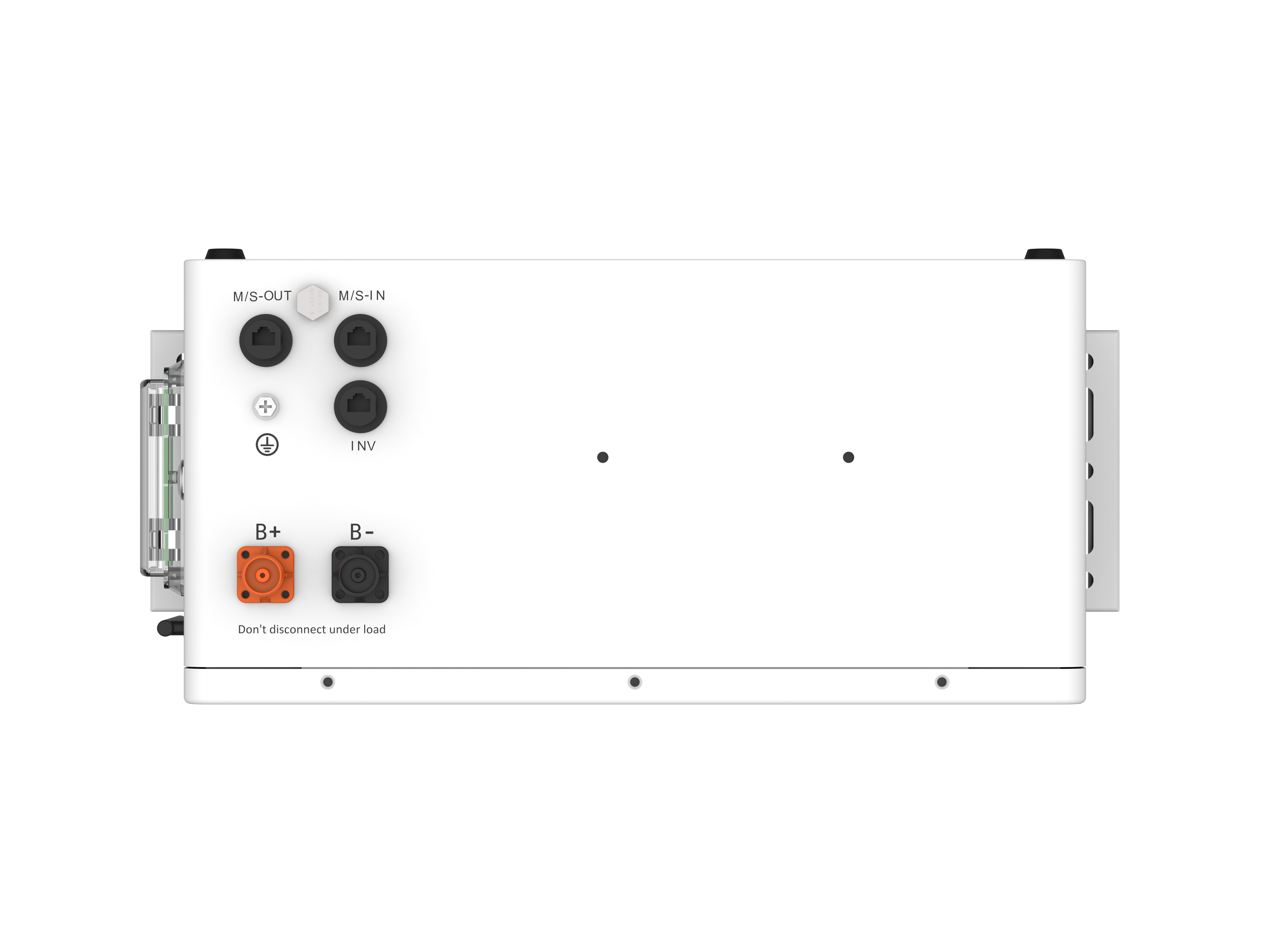

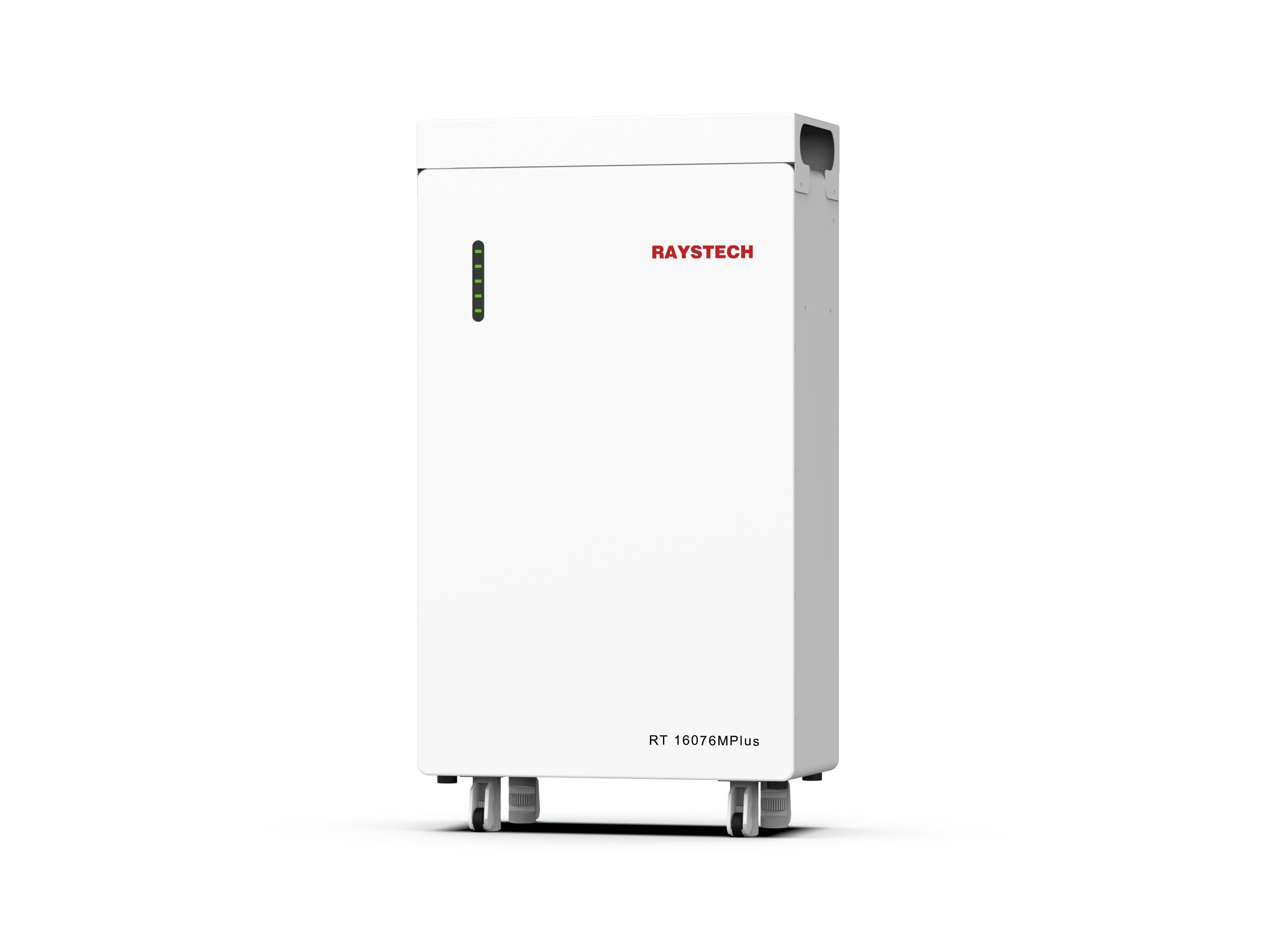

The RT 16076MPlus is a massive 16.07kWh single-unit LFP battery.
It combines pioneering Semi Solid-State technology with a flexible,
mobile design for large-scale residential and commercial needs.
Nominal Energy: 16.076 kWh | Voltage: 51.2V
Max Current: 200A (Fast Charge/Discharge)
Peak Power: 12kW (3s)
Temp. Range: Charge (0~55℃) / Discharge (-20~55℃)
Protection: IP65, Built-in DC Breaker & MOS Protection
Mobility: Equipped with wheels and optional heating module.
It combines pioneering Semi Solid-State technology with a flexible,
mobile design for large-scale residential and commercial needs.
Nominal Energy: 16.076 kWh | Voltage: 51.2V
Max Current: 200A (Fast Charge/Discharge)
Peak Power: 12kW (3s)
Temp. Range: Charge (0~55℃) / Discharge (-20~55℃)
Protection: IP65, Built-in DC Breaker & MOS Protection
Mobility: Equipped with wheels and optional heating module.
RT 16076MPlus: High-Capacity Semi Solid-State LFP Battery (16.07kWh)
Core Advantages
- Ultimate Safety: Advanced semi-solid electrolyte design eliminates leakage risks and significantly mitigates thermal runaway.
- 16,000 Cycles: Exceptional durability (@70% SOH).
- Massive Scalability: Supports up to 40 units in parallel; compatible with mixed new and old battery batches.
- High-Power Performance: 200A fast charge/discharge with 12kW peak power.
- Smart Management: Built-in Smart BMS with automatic cell balancing, remote WiFi monitoring, and an intelligent wake-up function.
- All-Weather & Easy Setup: IP65 rated for outdoor use, featuring an optional heating module for freezing climates and wheels for effortless mobility.
- Self-Heating: Optional built-in heating module for all-weather reliability.

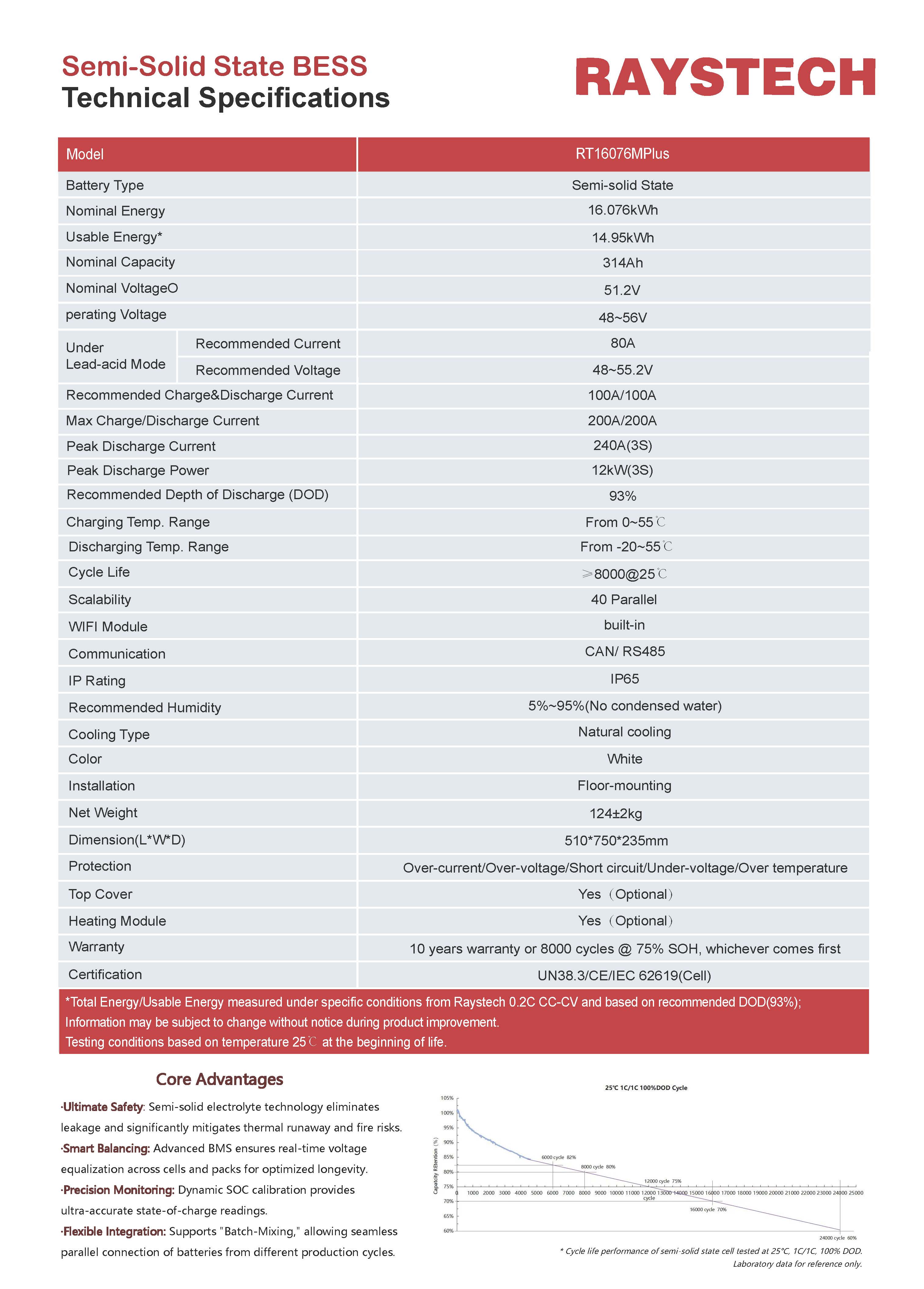

Technical Specifications
- Nominal Energy: 16.076 kWh | Voltage: 51.2V
- Max Current: 200A (Fast Charge/Discharge)
- Peak Power: 12kW (3s)
- Temp. Range: Charge (0~55℃) / Discharge (-20~55℃)
- Protection: IP65, Built-in DC Breaker & MOS Protection
- Mobility: Equipped with wheels and optional heating module.
Applications
- Large Residential Estates: A single unit covers the daily energy needs of most large households, reducing the complexity of multiple battery connections.
- Commercial & Industrial (C&I) Backup: The 40-unit parallel capability (640kWh+ total) makes it a robust solution for factories, warehouses, and data centers.
- Off-Grid Power Stations: Its mobile design (wheels) and massive capacity are perfect for remote cabins, temporary construction sites, or off-grid farm management.
- System Retrofitting: The ability to mix new and old batteries makes it the best choice for expanding existing energy storage systems without wasting old assets.
