CIS 240kWh

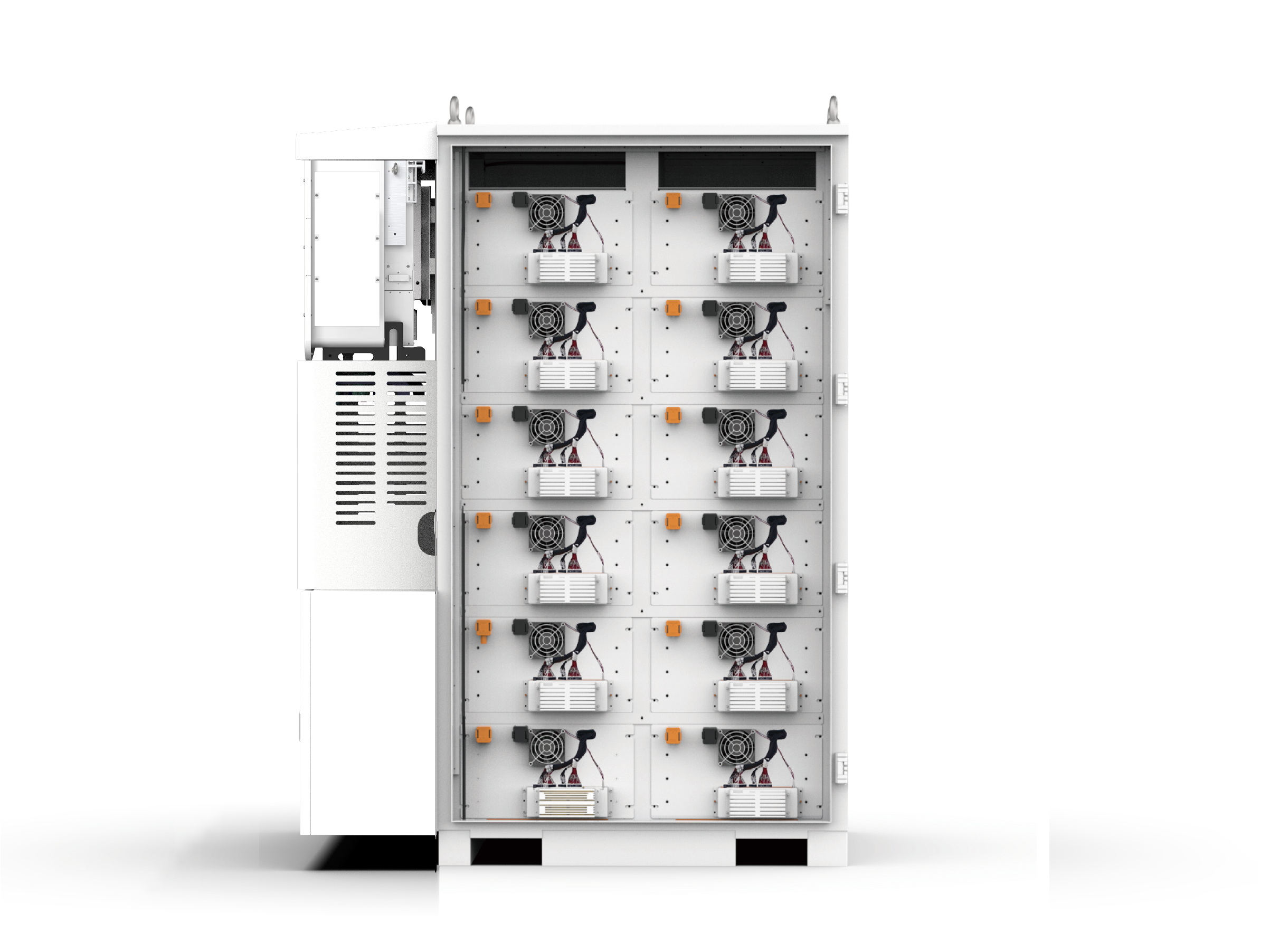

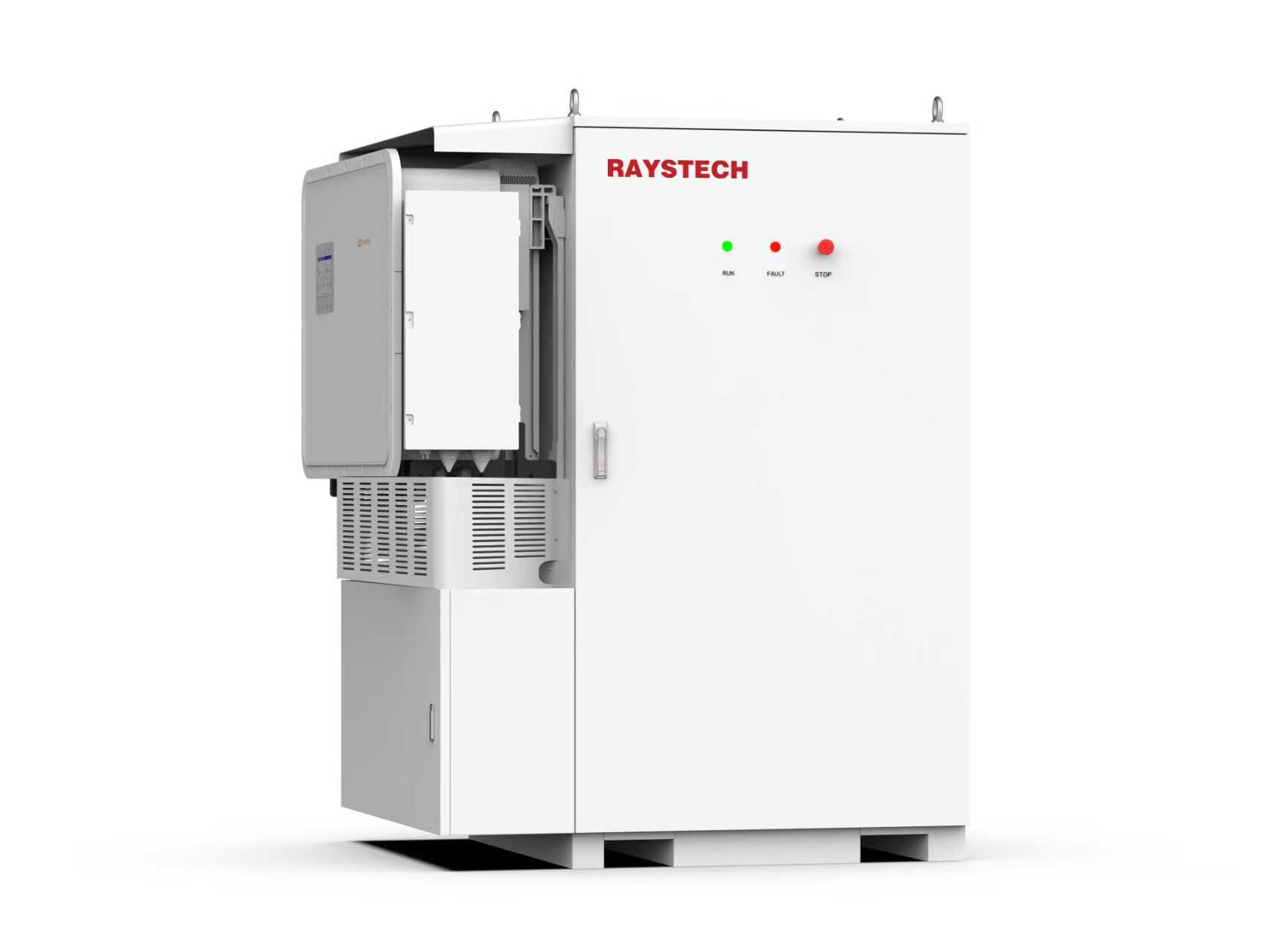

The RAYSTECH-CIS 240kWh is a high-capacity battery storage cabinet specifically engineered for Commercial & Industrial (C&I) applications.
By focusing on intrinsic safety through Semi Solid-State technology,
this system provides a robust and reliable energy heart that can be flexibly paired with compatible external inverters (PCS).
System Energy: 241.15 kWh
Battery Technology: Semi Solid-State LFP (314Ah Cells)
Nominal Voltage: 768V (High-Voltage System)
IP Rating: IP54 (Outdoor Grade)
By focusing on intrinsic safety through Semi Solid-State technology,
this system provides a robust and reliable energy heart that can be flexibly paired with compatible external inverters (PCS).
System Energy: 241.15 kWh
Battery Technology: Semi Solid-State LFP (314Ah Cells)
Nominal Voltage: 768V (High-Voltage System)
IP Rating: IP54 (Outdoor Grade)
RAYSTECH-CIS 240kWh: Ultra-Safe Semi Solid-State C&I Battery Cabinet
Core Advantages
- Intrinsic Safety: Thanks to the advanced semi-solid electrolyte, the cells are non-flammable and leak-proof. This "intrinsic safety" eliminates the need for complex internal fire extinguishing agents while providing peace of mind for business assets.
- Precision Climate Control: Equipped with an integrated Industrial Air Conditioner, the cabinet maintains an optimal internal temperature via active cooling and heating, ensuring stable performance in all weather conditions.
- 10-Year Reliability Warranty: We stand behind our quality with a professional 10-year / 8,000-cycle warranty, ensuring a secure long-term investment and consistent ROI for your energy projects.
- Flexible Inverter Integration: As a dedicated battery cabinet (non-all-in-one), it offers open compatibility, allowing installers to select the best-matched high-voltage inverter or PCS for specific site requirements.
- Scalable Power (Up to 1.92MWh): Designed for growth. Easily connect up to 8 units in AC parallel to build a large-scale energy reserve for expanding industrial needs.
- Pre-Engineered Simplicity: Delivered as a fully assembled cabinet with internal DC distribution, significantly reducing on-site installation time and labor costs.
Technical Specifications
- System Energy: 241.15 kWh
- Battery Technology: Semi Solid-State LFP (314Ah Cells)
- Thermal Management: Industrial Air Conditioning (Cooling & Heating)
- Warranty: 10 Years / 8,000 Cycles
- Nominal Voltage: 768V (High-Voltage System)
- IP Rating: IP54 (Outdoor Grade)
- Communication: CAN / RS485 (Compatible with mainstream C&I inverters)
Applications
- Safety-Critical Industrial Sites: The premier choice for factories and warehouses where traditional lithium fire risks are a concern.
- C&I Peak Shaving: Optimize energy costs by shifting loads and reducing expensive peak-demand charges.
- Solar-Plus-Storage Hubs: Works as the core storage unit for large rooftop solar arrays in commercial complexes.
- High-Latitude/Extreme Environments: The built-in air conditioner ensures the system thrives in both scorching heat and freezing winters.
